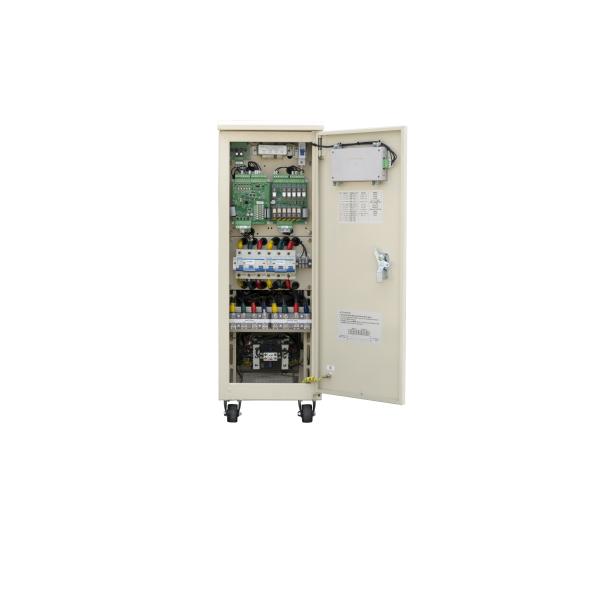

50KVA SBW Automatic Voltage Stabilizer For industry with CE
Certificate
Quick Detail:
| Capacity | 50KVA |
| Certificate | CE |
| Model | SBW |
| Phase | Three Phase |
Description:
Voltage regulation problems account for more than 90% of the power
quality problems seen at most sites. The MODERN Voltage regulators
provide protection against mains power sags, surges and brownouts.
It is ideal for geographical regions that are subject to
inconsistencies in the mains supply, such as Africa, Asia and
certain parts of Europe.
Each regulator has a wide input voltage tolerance, and has been
designed to provide the ultimate reliability in hostile
environments, where the quality of the mains supply cannot be
guaranteed.
Applications:
BROADCAST: Regulation for broadcast transmitter sites and studios.
COMMERCIAL: High-rise building, elevator control, large A/C chillers,
lighting, and other sensitive critical systems.
INDUSTRIAL: Industrial automation, process control, CNC, factory robotics,
heavy load machinery.
MEDICAL: X-ray, CT scanner, MRI system, Radiation therapy machine, other
medical imaging equipments.
TELECOM: Mobile base stations, exchanges stations, control centers and
transmission relay stations, .
Specifications:
| Input Voltage | 260-450V |
| Output Voltage | 380V |
| Supply Frequency | 50/60Hz |
| Insulation Resistance | ≥2MΩ |
| Voltage Regulation Mode | Independent phase regulation for three phase |
| Waveform Distortion | nil |
| Insulation Class | H class |
| Method of Voltage Regulation | Regulation transformer with servomotor |
| Insulated Strength | Three phase: 2500V/1min without puncture |
| Efficiency | >97% on full load |
| Overload Rating | Withstand 200% overload in short time |
| Protection class | IP20(indoor), outdoor type on request |
| Electrical safety | CE equivalent |
| Operational Temperature | -20 °C to +45 °C |
| Functions | Power-on style, Malfunction protection, Short-circuit protection,
Lack of phase protection, Over voltage shutdown, Under voltage
shutdown, Safe start |
