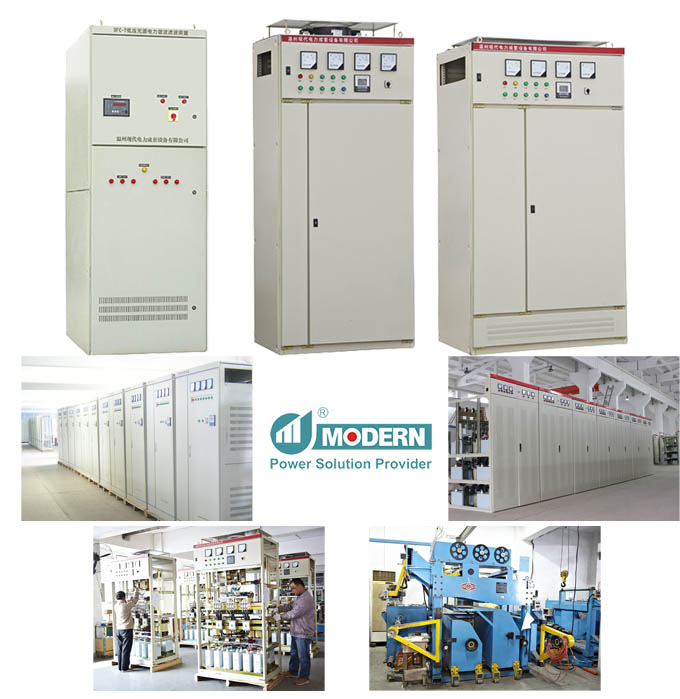

300KVAR Three Phase 380V/400V Active Harmonic Filter

Quick Detail:

Model: LBJ-T300

Description:

With other harmonic filtering solutions, expensive and time consuming site data collection, power quality surveys and computer generated studies are usually needed. Most harmonic filters are designed to accommodate just one or a few harmonic orders. The MODERN Active Power Filter(APF) corrects a full range of harmonic orders, and will not create a resonance condition with existing equipment.

The APF injects compensating current into the load to restore the sine wave and dramatically reduce distortion to less than 5% THD. Its high speed process cancels high frequency output current, while it determines the precise value of injected load current.

The MODERN APF provides the simplest and most effective means to mitigate harmonics, reduce process-related voltage fluctuations, and improve equipment operating life and system capacity.

Applications:

• Computers and Peripherals
• Variable Frequency Drives (VFDs)
• Welding Machines
• Uninterruptible Power Supplies
• Frequency Converters
• DC Power Systems/Chargers

Specifications:

• Voltage ratings from 208 to 480vac
• 25 to 300 amp ratings
• Cancels 3rd to 51st orders
• Graphics display and analyzer
• Individual or parallel systems for added capacity
• NEMA 1, 12, 3R enclosure ratings

Competitive Advantage:

• Immediately improves electrical system efficiency
• Reduces operations and maintenance costs
• Quick and easy installation, with virtually no downtime
• No need for complex site analysis
• Dynamically corrects a wide spectrum of harmonic orders

Better Power Quality, More Energy Saving

Wenzhou Modern Group(MODERN) is one of a leading company in designing and manufacturing Power Quality and Energy Saving products in the world.

Wide Power Solutions

Since 1979, MODERN has pioneered improvements in power solutions sectors for Industrial, Commercial, Medical, Broadcast and Telecom applications. Our products range various from Voltage Stabilizers, Voltage Optimizers, Voltage Regulator, Transformers and Reactors to Frequency Converters, UPS, Harmonic Filters, Power Factor Correction and Surge Protectors.

Experienced and Fully Customizable Solutions

All MODERN products are designed and manufactured with the worldwide ISO quality standards. Besides standard production, MODERN can be extremely flexible in developing and manufacturing special tailored specifications thanks to a proficient technology development.

Worldwide Service & Support

MODERN is well established in the international markets. Thanks to strategically positioned offices and distributors, MODERN’s products are installed and working in over 50 countries and regions around the world.

MODERN is committed to provide complete innovative and cost-effective power quality and energy saving solutions coupled with excellent customer service for all kinds of critical applications.
